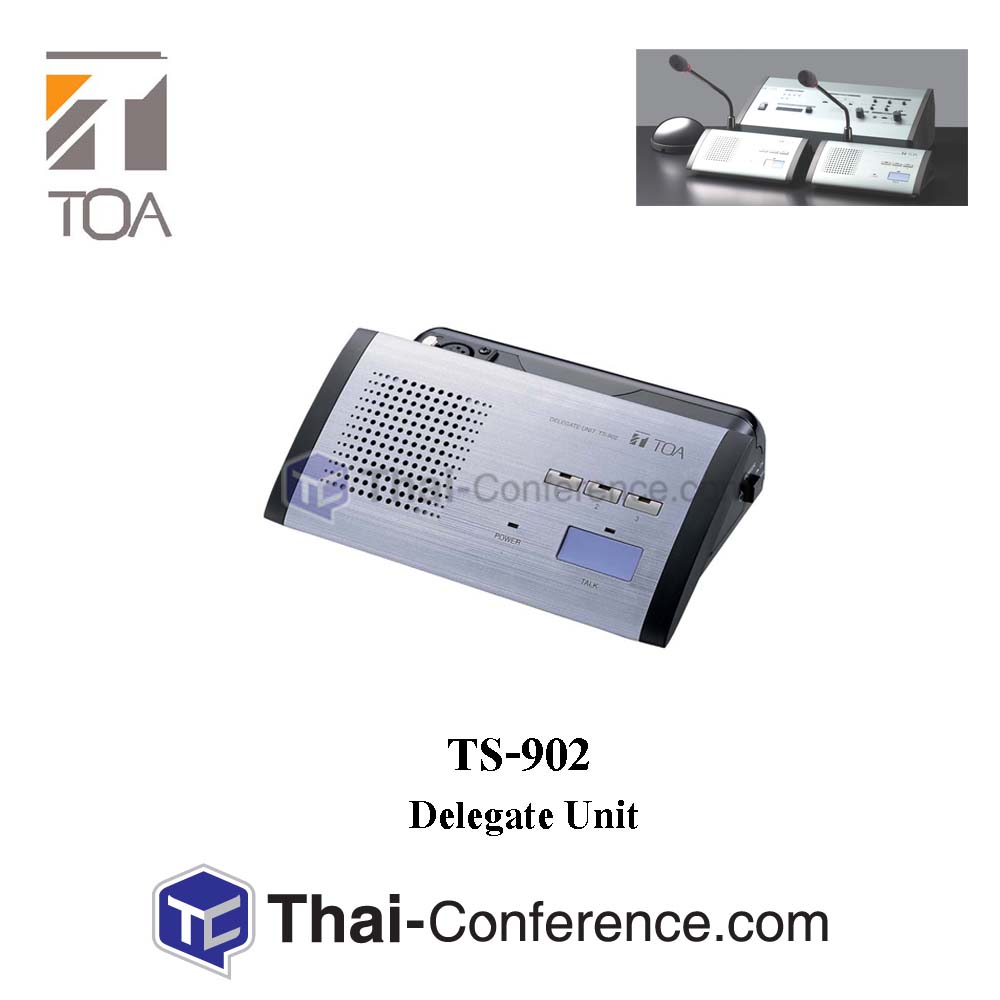

TS-902 delegate unit
Description
The TS-902 is a Delegate unit of the Infrared Conference system. Since the system is cordless, it can be easily installed and removed. It can be operated on either the AD-0910 AC adapter (optional) or the BP-900 lithium-ion battery (optional). It is equipped with a remaining battery indicator. Two types of dedicated microphones are made available for the TS-902 as optional products: the TS-903 standard type and the TS-904 long type.
Specification
- Power Source 7.4 V DC (battery), 9 V DC (AC adapter) (supplied from BP-900 battery (option) or AD-0910 AC adapter (option))
- Current Consumption Max. 270 mA
- Input Microphone terminal: Combined type of XLR-4-31 (dedicated for connecting the optional TS-903 or TS-904)
- Output Monitor speaker: 8 Ω, 0.2 W
- Headphone: Mini jack × 2
- LED Indicator Speech indicator (flashes when the unit is out of communications range),
- Voting status indicators 1 -3 (flashes when the unit is out of communications range or when the battery level is low),
- Power indicator (flashes when the unit is out of communications range or when the battery level is low)
- Battery Life Approx. 10 hours (when the fully-charged BP-900 battery is used with During speech” to “Standby” ratio of 1:2)”
- Operating Temperature 0℃ to +40℃
- Finish Top panel: ABS resin, gray metallic, paint, semi-gloss
- Dimensions 210 (W) × 65.9 (H) × 152 (D) mm
- Weight 640 g
- Option Microphone: TS-903, TS-904 (Select either one.)
- Lithium-ion battery: BP-900
- AC adapter: AD-0910
