ชุดประชุมมีสาย > TOA > TOA TS-770 Series Conference System

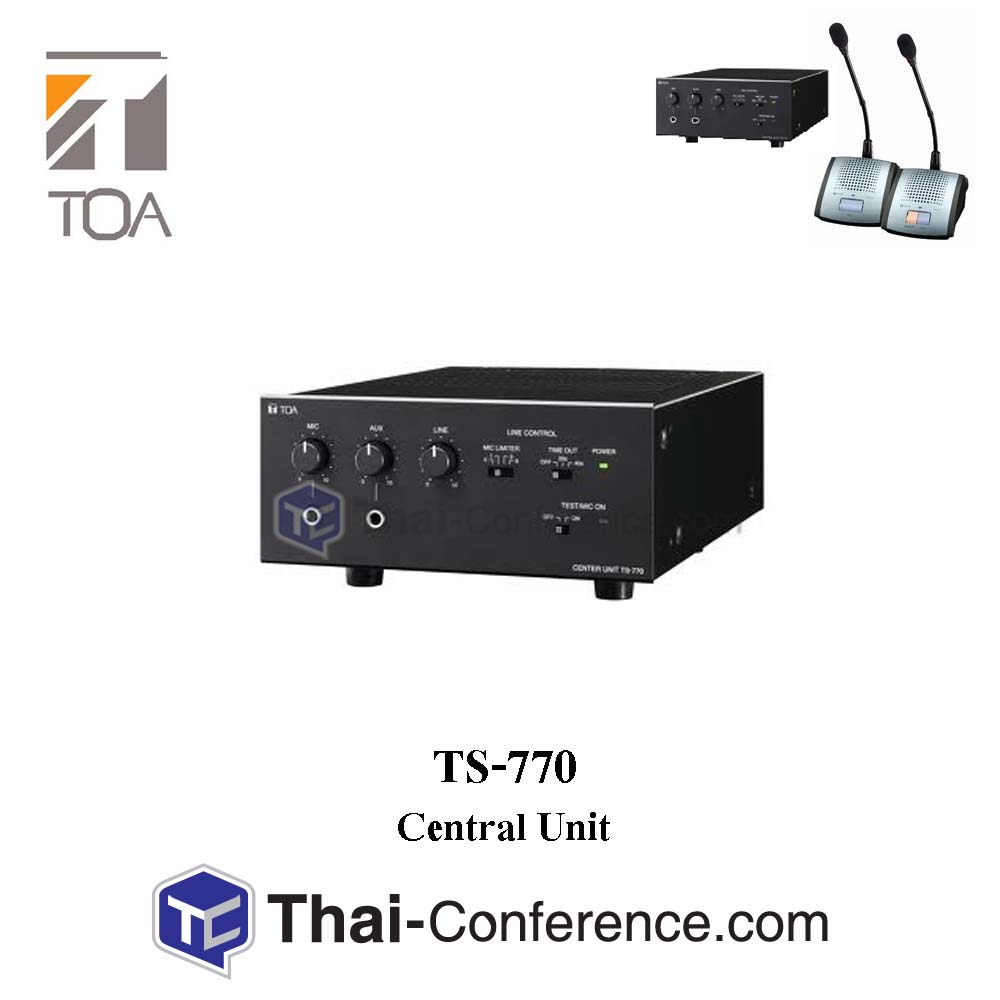

TOA TS-770

TOA TS-770

รหัสสินค้า:TS-770

ยี่ห้อ:TOA

รุ่น:TOA TS-770 Series Conference System

รายละเอียด:

รายละเอียด:ชุดประชุม เครื่องควบคุมและจ่ายกระแสไฟชุดประชุม Central Unit Conference System

ราคา:24,050.00 บาท

ดาวน์โหลด: แคตตาล็อกคู่มือการใช้

Central Unit of TS-770 Series Conference System





  • Maximum 70 Chairman and Delegate Units (up to 35 units per line) are connectable to one Central Unit.
  • Expandable to maximum 210 units by connecting 2 additional Central Units.
  • Equipped with All-Mic-On function that simultaneously turns on all microphones for sound collecting and recording of all units.
  • 2 Pin jacks and phone-jack for recording
  • Remote conferencing is possible, enabling people at a remote location to participate in the conference.
    • With TS-775 Interface Unit,the systems using telephone, IP telephone, and mobile phone are available.
    • Without TS-775, the systems using IP telephone, Telephone coupler, mobile phone and TOA's NX-100/100S Network Audio Adapter are available.
  • The Test function feature enables easy checking of the connection status of all connected units.
  • Number of simultaneously usable delegate units can be selected (0, 1, 3, 6 selectable)
    • "0" means speech is possible by the Chairman unit only.
  • Automatic Mic-Off function(TIME OUT)



Specification
Power Req. AC Mains, 50/60Hz
Power Consumption Max. 60W
Rated Output 35V DC, 650mA x 2
Input MIC: -60dB*, unbalanced, phone jack
AUX: -20dB*, 10k ohms, unbalanced, phone jack
Output Recording: –20dB*, 10k ohms, unbalanced, phone jack, pin jack x 2
Equalizer Insertion Input Terminal Input: -20dB*, 10k ohms, pin jack
Output: -20dB*, 10k ohms, pin jack
Expansion Input/Output Terminal Input: -20dB*, 10k ohms, pin jack x 2
Output: -20dB*, 10k ohms, pin jack x 2
Control: 10k ohms or more, voltage output, pin jack x 2
Control Priority Speech chime: Operation of TS-771's priority button activates a single-tone chime.
Speaker restriction: Number of simultaneously-usable TS-772s and TS-775s can be set to 1,3 and 6.
Automatic Mic-off: Function OFF/20s/40s (selectable)
Number of Connectable Conference Units 70 (Max. 35 units per line),
Max. 210 (with 3 Central Units)
Operating Temperature 0ºC – +40ºC
Operating Humidity Under 90% RH (no condensation)
Dimensions 210(W) x 107.1(H) x 316(D) mm
(8.27" x 4.22" x 12.44")
Finish Panel: Aluminum, hairline, black
Case: Pre-coated steel plate, black, 30% gloss
Weight 4 kg (8.82 lb)
Accessory Power cord (2m (6.56 ft.)) x 1
Option Extensio cord: YR-770-2M, YR-770-10M

New!

The new TS-770 Series Conference System is ideal for conferences and meetings in government,  corporate, educational and hotel applications. The new system provides communications for conferences and boardrooms. The easy to use TS-770 Series is comprised of the TS-770 Central Unit supporting up to 70 chairperson / delegate stations. The new TS-770 Series conference system is backed with a five year product warranty.



Features

  • Easy to set up and operate
  • Up to 70 Chairperson/Delegate stations per TS-700 Central Unit
  • Supports system expansion up to (3) TS-700 Central Units for a total of 210 Chairperson/Delegate stations in one system
  • Telephone or PC Remote Delegate station operation using the TS-775
  • All Microphones ON Record function
  • External source inputs and PA/record outputs
  • System Test function
  • Five year warranty
System Components


TS-770
Central Unit



Front View







Rear View

  • Supports up to (70) TS-771 Chairperson and TS-772 Delegate Stations

  • Aux, Line and Mic inputs
  • Up to six simultaneous speakers
  • All mics open record function
  • PA/Record output
  • System Test function
  • Person speaking automatic Time-Out function (selectable)
    • OFF
    • 20 seconds
    • 40 seconds
  • Five year warranty



   TS-771
Chair Person Station



(The microphone shown is not provided with the unit.)



  • Uses (Optional) TS-773 or      TS-774 Gooseneck Microphone

  • 3.5mm Headphone and Record Output with volume control
  • Priority override control
  • Built-in speaker
  • Push to talk control
  • Contact closure output when microphone is active
    • Can be used for camera call-up, tally or other devices
  • Five year warranty



TS-775

Remote Delegate Station

  • Audio Input/Output for local PC connection to a remote PC participant
    • PC to PC call connection over network uses third party software/service not provided by TOA
  • RJ-11 connection provided to connect with handset connector on telephone base unit for calls connected to a remote telephone participant
  • Speech Mode (Selectable)
    • Auto: VOX (Voice Activated Switch)
    • Manual: Talk Key On-Off switching function

  • Contact closure output

    when microphone is active

    • Can be used for camera call-up, tally or other devices

  • Five year warranty



TS-772

Delegate Station







(The microphone shown is not provided with the unit.)



  • Uses (Optional) TS-773 or      TS-774 Gooseneck Microphone

  • 3.5mm Headphone and Record Output with volume control
  • Built-in speaker
  • Push to talk control
  • Contact closure output when microphone is active
    • Can be used for camera call-up, tally or other devices
  • Five year warranty



TS-773

Standard Microphone

  • Unidirectional - Electret condenser microphone
  • Red LED ring light active speech indicator
  • 14.49" Length
  • Use with TS-771 or TS-772
  • Five year warranty


TS-774

Long Microphone

  • Unidirectional - Electret condenser microphone
  • Red LED ring light active speech indicator
  • 20.39" Length
  • Use with TS-771 or TS-772
  • Five year warranty


YR-770-2M

Station Extension Cord

  • Length 6.56' (2M)
