The DICENTIS Cable Assemblies are terminated at
both ends with RJ45 like connectors with additional
power pins. The cable assemblies are used to connect
a DICENTIS device to the audio powering switch or to
the powering switch. It provides network
communication and power transports in one cable.
The cable assemblies are used when loop‑trough and
redundant cable connections are required. The cable
assemblies are made of low smoke zero halogen
material to comply with safety and environmental
standards.
Certifications and approvals
Region Certification
Europe CE
Technical specifications
Dimensions (dia.) 6.40 mm
Material Low smoke zero halogen (FRPE
LSZH)
Color Traffic black RAL 9017
Bending radius 38 mm

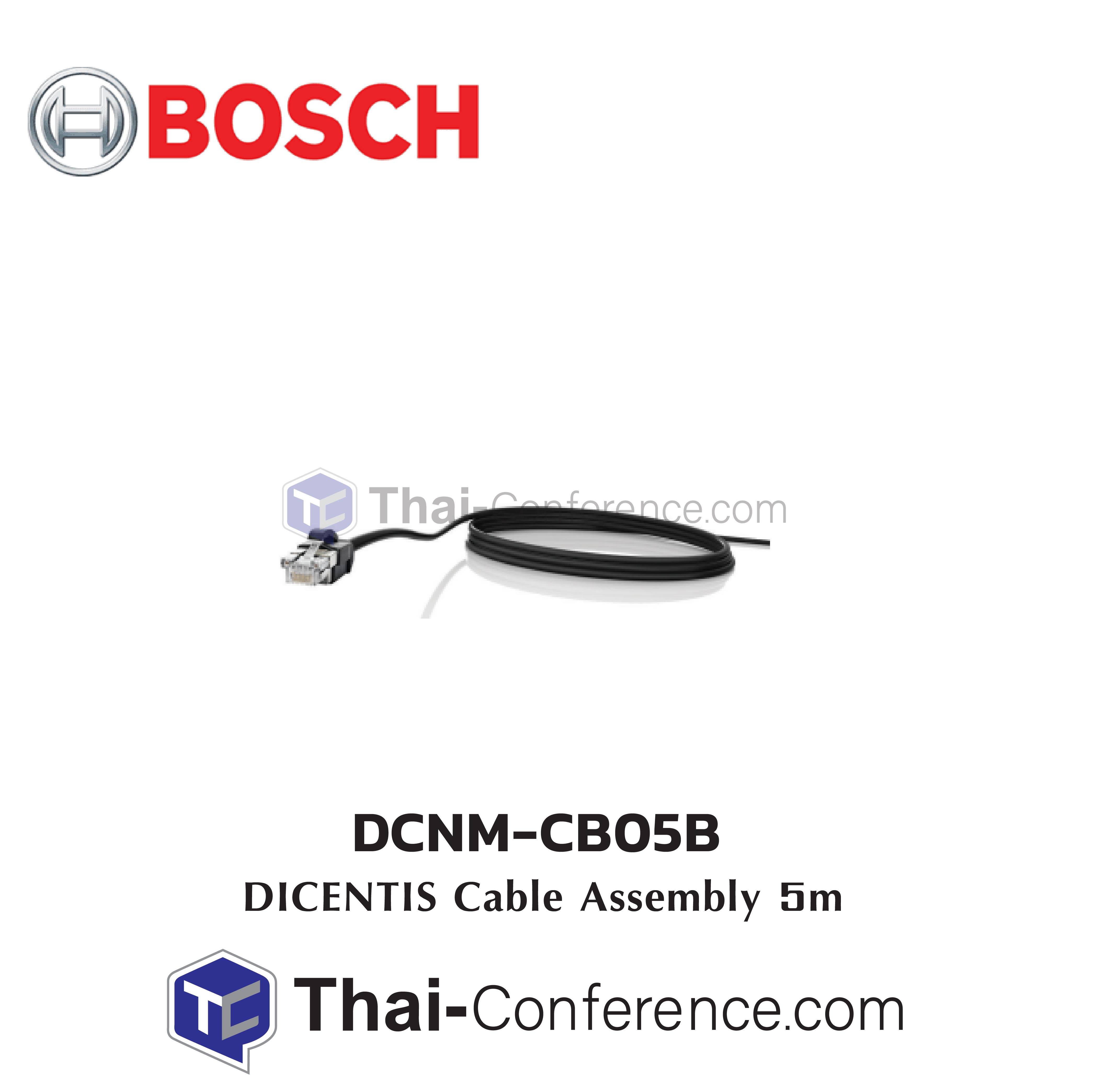

DICENTIS Cable Assembly 5m 5 m (16.0 feet), system network cable for connecting all DICENTIS devices. Order number DCNM-CB05B
