Functions
• Headphone output level reduction to prevent acoustic feedback (active when listening to the floor and when the microphone is on)
• The unit can be used a delegate unit or as a chairman unit (DCN-DISBCM chairman buttons to be ordered separately).
• To lock the loop-through cable, a cable clamp is available (DCN-DISCLM, to be ordered separately).

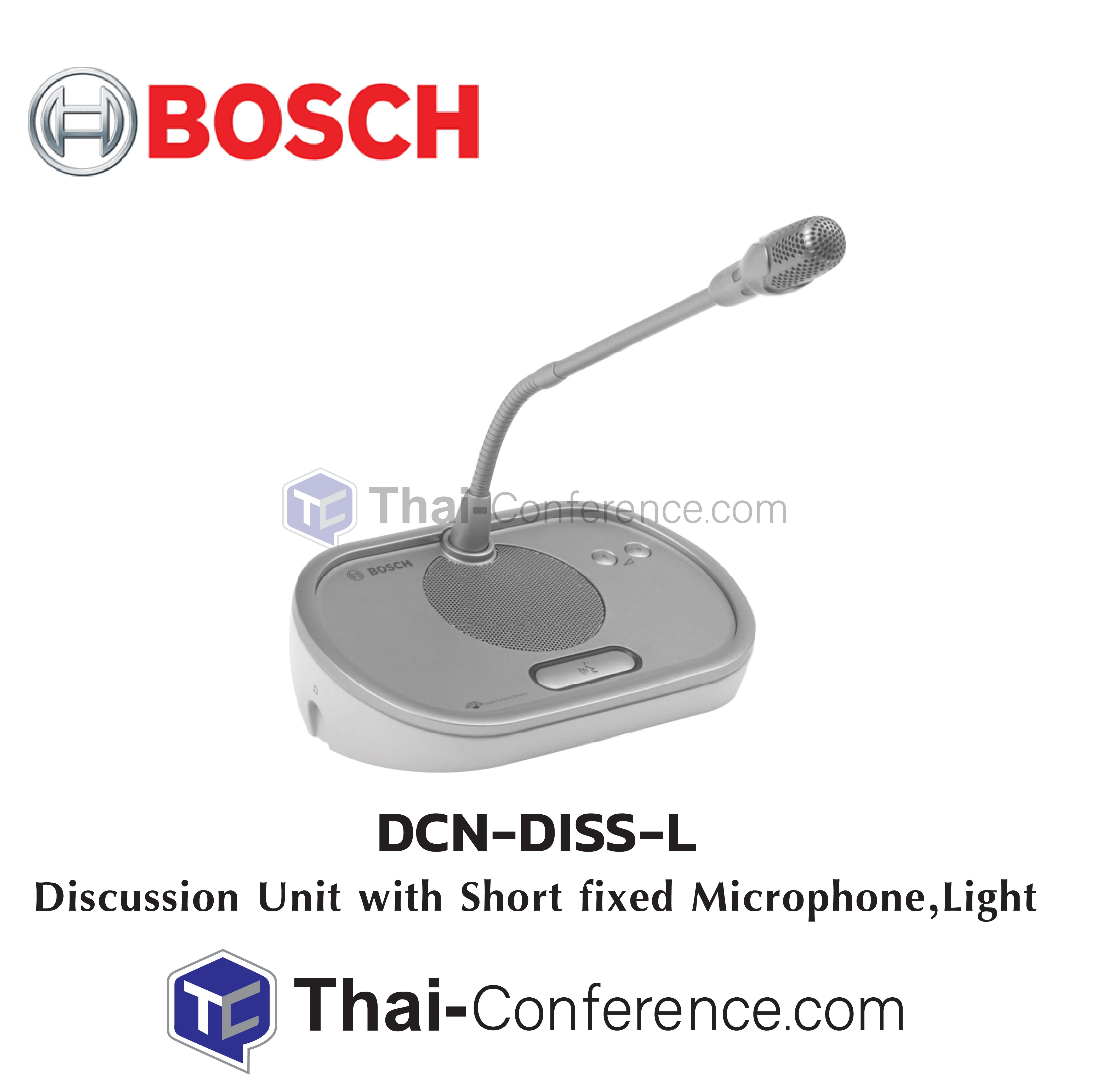

• The unit is available with two different microphone lengths and in light and dark colored bases.
Certifications and approvals
Region Certification
Europe CE
Technical specifications
Electrical
Frequency response 30 Hz to 20 kHz
Headphone load impedance > 32 ohm < 1kohm
Output power 2 x 15 mW/32 ohm
Mechanical
Mounting Tabletop (portable or fixed mounting)
and flush mounting
Dimensions (H x W x D) (without microphone)
Tabletop 61 x 190 x 116 mm
(2.4 x 7.5 x 4.6 in)
Flush mounted 6 x 190 x 120 mm (0.2 x 7.5 x 4.7 in)
Microphone lengths
DCN-DISS 300 mm (11.8 in)
DCN-DISL 470 mm (18.5 in)
Weight
DCN-DISS 880 g (1.94 lb)
DCN-DISL 895 g (1.97 lb)
Color top Silver (RAL 9022)
Color base
DCN-DISS-L Light Grey (RAL 000 7500)
DCN-DISS-D Charcoal (PH 10736)
DCN-DISL-D Charcoal (PH 10736)
