Functions
Controls and Indicators

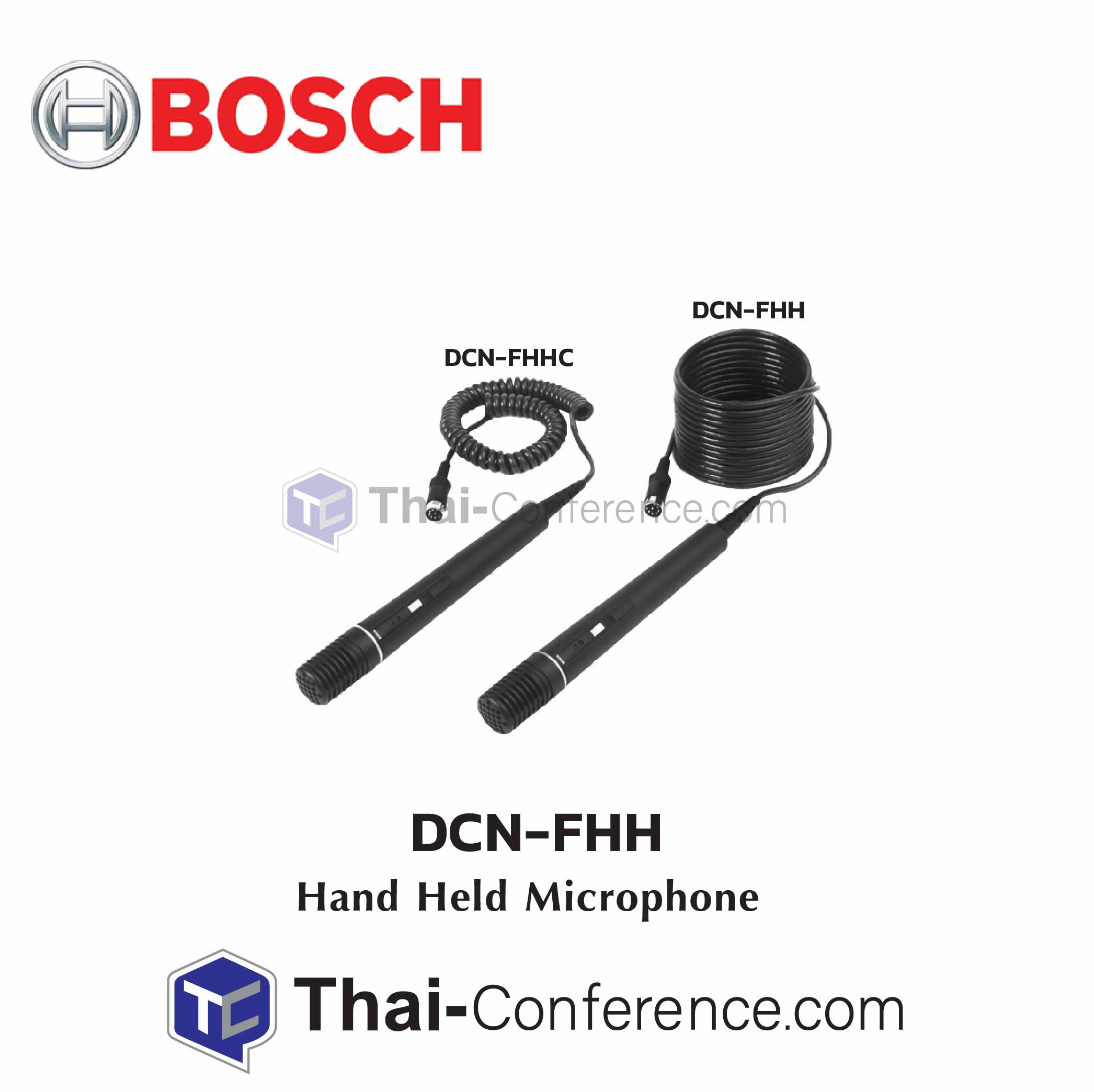

• Condenser microphone with built-in plop and windshield
• Microphone on/off or request-to-speak button
• ‘Microphone on’ indicator (red LED)
• ‘Request-to-speak’ confirmation indicator (green LED)
Certifications and approvals
Region Certification
Europe CE
Technical specifications
Mechanical
Mounting Using clamp LBC 1215/01 the
microphone may be mounted on a
stand, wall or on a chair
Dimensions (H x W) 215 x 30 mm (8.5 x 1.2 in)
Cable length
DCN-FHH 5 m (16.4 ft)
DCN-FHH-C Coiled 0.4 m (1.3 ft), un-coiled 1.4 m
(4.6 ft)
Weight 350 g (0.77 lb)
Color Charcoal (PH 10736)
