Functions
• Built-in “Silent” function; no audio output until one of the keys has been pressed to eliminate audible noise from the headphones when not in use
• Upon insertion of a headphone the default “floor” channel (channel 0) is selected with a comfortable headphone volume and the dimmed backlighting is activated

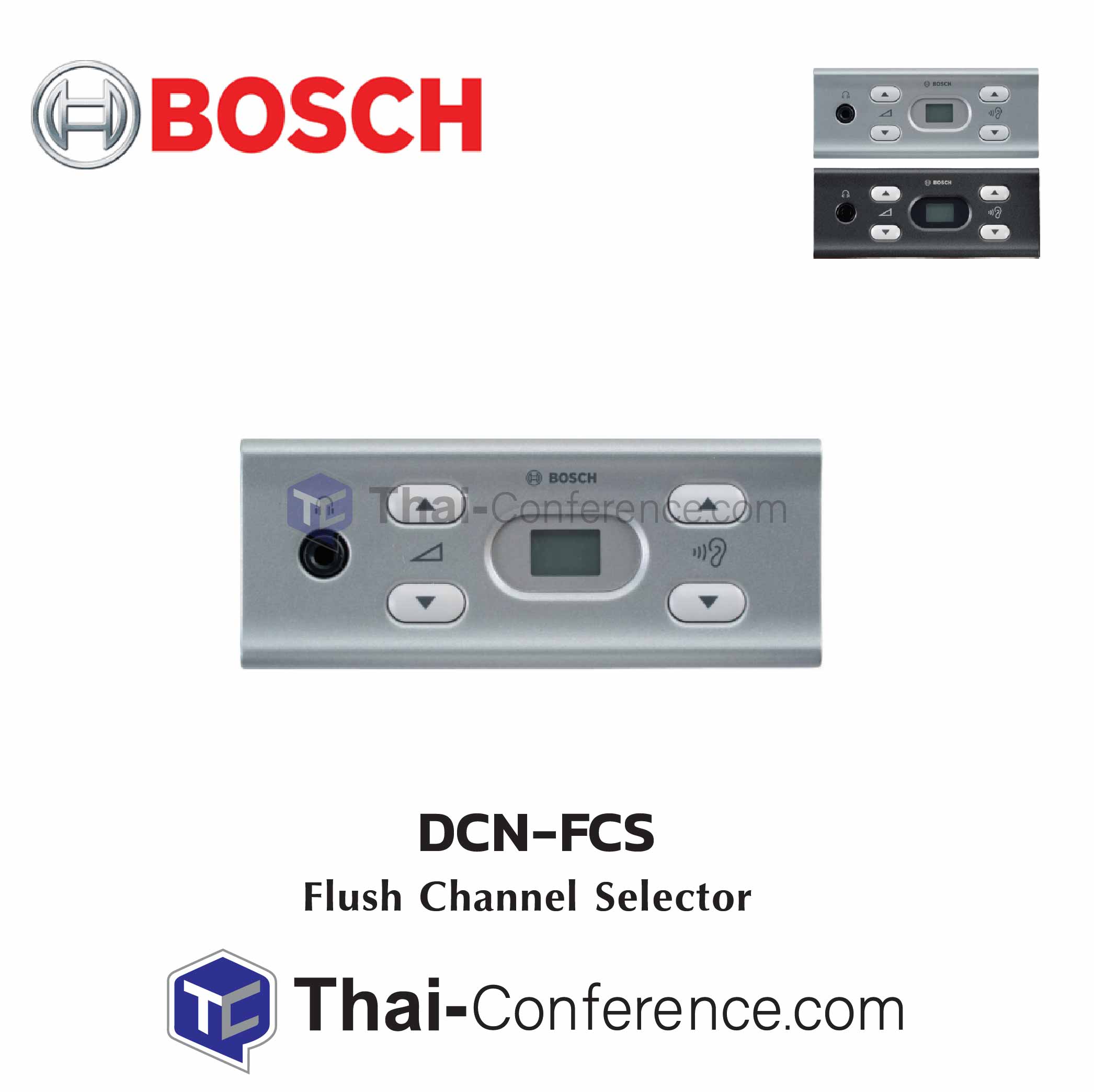

Controls and Indicators
• Two push-buttons (up/down) for channel selection
• Two push-buttons (up/down) for headphone volume control
• Backlit 2‑digit LCD for channel number indication Interconnection
Interconnections
• 3.5 mm (0.14 in) stereo jack headphone connector
• Connector for external headphone
• 2 m (78.7 in) cable with a molded six-pole circular connector Six-pole circular connector for loop-through interconnection
Technical specifications
Electrical
Frequency response 30 Hz - 20 kHz
Headphone Load
impedance
> 32 ohm < 1 k ohm
Output power 2 x 15 mW/32 ohm
Mechanical
Mounting Flush mounted
Dimensions (H x W x D) 40 x 100 x 78.67 mm
(1.6 x 3.9 x 3.1 in)
Weight 0.3 kg (0.66 lb)
Color
DCN‑FCS Silver (RAL 9022)
DCN‑FCS‑D Dark (graphite gray)
