Functions
Controls and Indicators

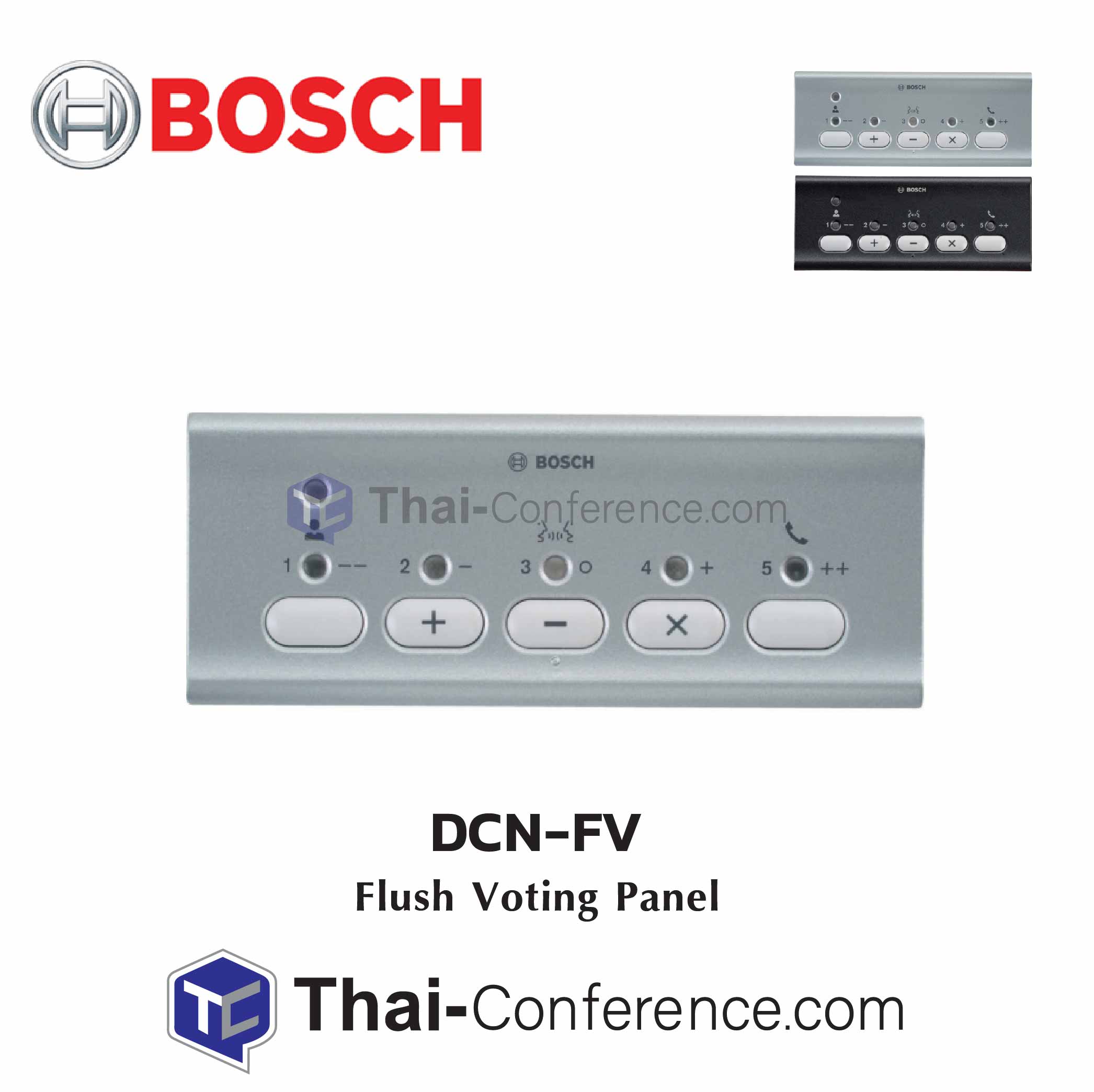

Front
• Five voting buttons with yellow confirmation indicators to prompt the user to indicate presence, to vote and to confirm registration of what is voted. The buttons and indicators work as follows:
– Yes (+), no (-) and abstain (x) (used for attendance registration, parliamentary voting and for/against)
– Numerals 1 to 5 (used for multiple choice, opinion polls and rating)
– Rating scale: - -, -, 0, +, ++ (used for audience response)
• One blue LED unit active indicator to show that the system is in normal operation
Interconnections
• Two RJ11 connectors: one for connection to DCN-DDI Dual Delegate Interface, and one for loop through
• Connector for an external present contact (AMP173977-3 socket)
Technical specifications
Mechanical
Mounting Click-to-fit in a metal panel with a
thickness of 2 mm, or in combination
with DCN-FCOUP couplings and DCNFEC
end caps in any surrounding
Dimensions (H x W x D) 40 x 100 x 40.68 mm
(1.57 x 3.94 x 1.68 in)
Weight 81 g (0.18 lb)
Color
