Features
• Flexible gooseneck (single or dual bend)
• Includes Microflex cardioid capsule
• Compatible with Microflex cartridges in other polar patterns
• CommShield® Technology for improved immunity to RF noise
• Two-color illuminated light ring on microphone capsule
• Snap-fit foam windscreen (included)
• 10-pin modular connector
• High close-talk SPL level
• Low self-noise
Specifications (subject to change)
ELECTRICAL
Frequency response 50 to 17000 Hz
Polar pattern Cardioid
Maximum SPL (1 kHz at 1% THD, 1 kΩ load) 121 dB
Signal-To-Noise Ratio Ref. (94 dB SPL at 1 kHz) 66 dB
INTERCONNECTION
Conference unit connection 10-pin modular plug
MECHANICAL
Color Black
Temperature range 5º to 40º C

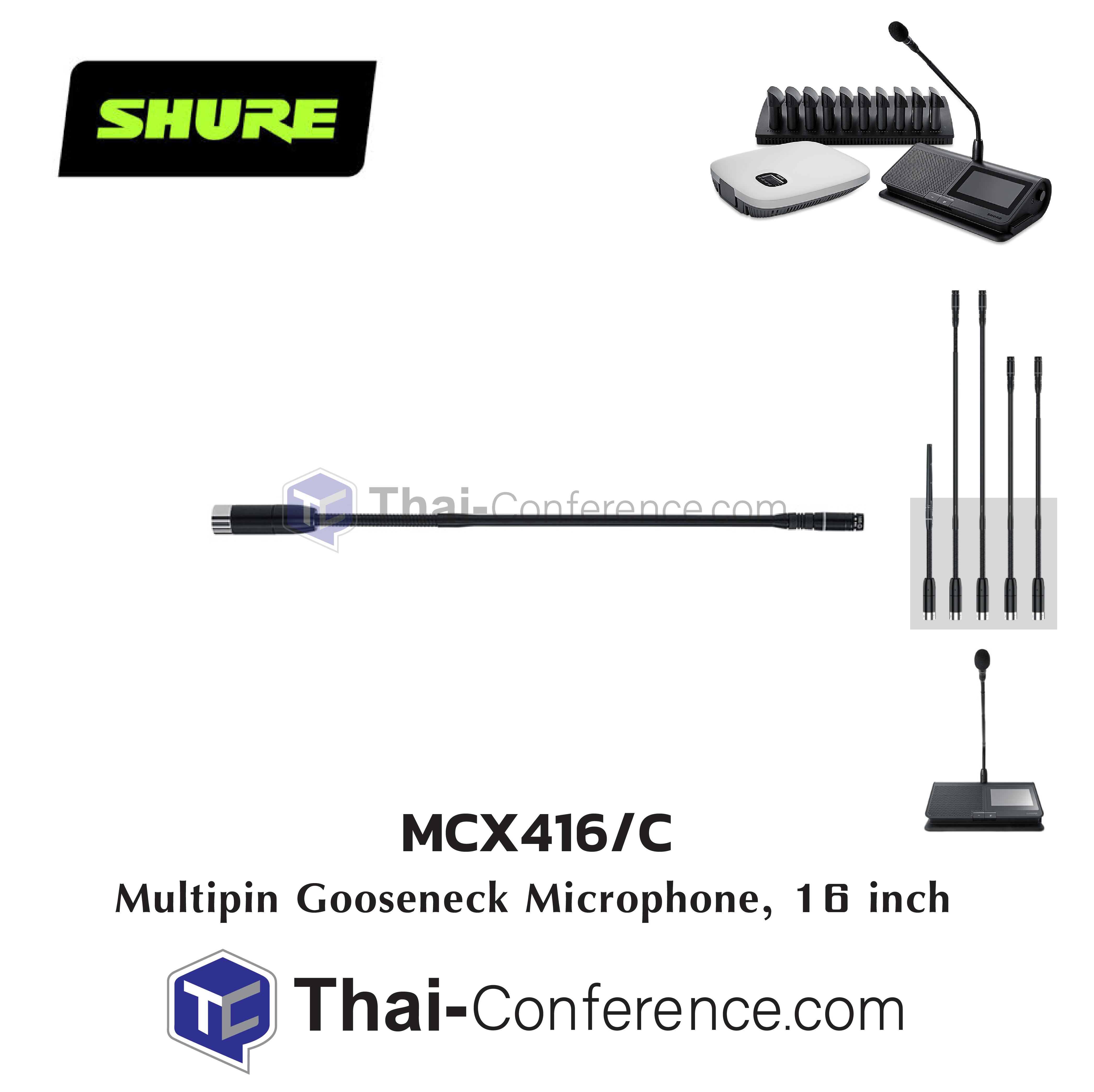

The MXC416 and MXC420 gooseneck microphones are available in two different lengths:
• MXC416: 40 cm (16 inches)
