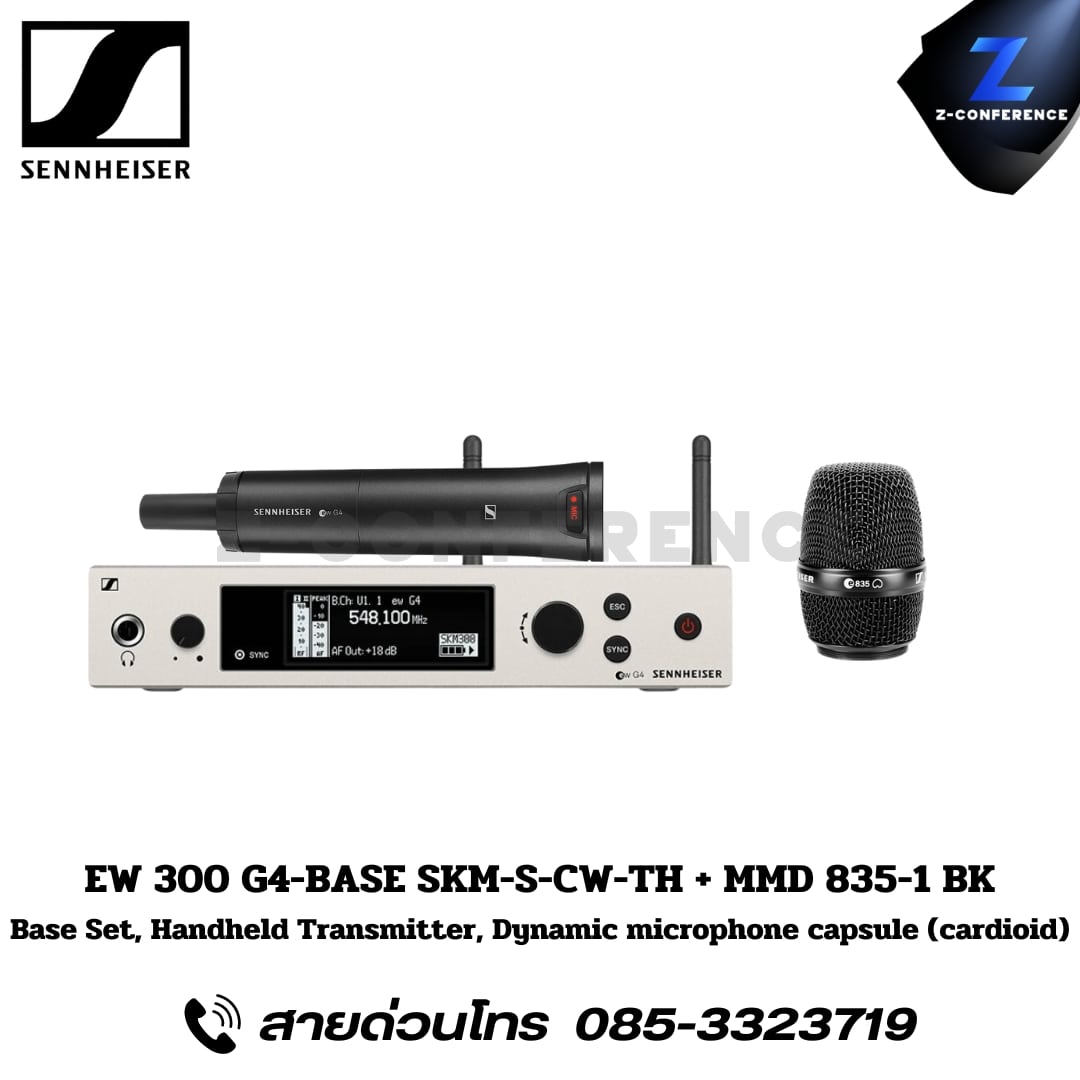

The Sennheiser G4 300 Series Wireless Handheld 835 Microphone Bundle Kit includes the SKM 300 G4-S handheld transmitter with no capsule, the EM 300-500 G4 wireless true diversity receiver, an MMD 835 cardioid dynamic mic capsule for handheld transmitters, two rod antennas, a GA3 rackmount kit, a power supply, two batteries, and a microphone clip. This kit has everything you need to capture audio in live stage, theater, rehearsal, and presentation applications.
In addition, Sennheiser Control Cockpit Software (download) offers easy handling, control, and maintenance for the Digital Wireless System. It provides a global overview of all network-enabled devices, shows all status information, and makes setting adjustments very easy.
Features:
- Easy to use, fast setup time
- Integrated network port allows control, monitoring and setup via Sennheiser Control Cockpit and WSM Software
- Broad range of products and existing accessories (such as microphones) allows usage in any kind of environment
- Up to 88 MHz bandwidth, up to 32 channels
- Increased RF output power (10/30/50 mW)
- Transmission Range: up to 100 meters / 330 feet
- Compatible with wireless speaker system LSP 500 PRO
- RC (remote control) switch available for the bodypack transmitter
Specifications
System
| Wireless Transmission | Analog UHF |
| Number of RF Channels | 3520 |
| Included Transmitters | 1 x Handheld |
| Diversity | True Diversity |
| RF Frequency Band | AW+: 470 to 558 MHz |
| RF Bandwidth | 88 MHz |
| Frequency Step Size | 25 kHz |
| Max Operating Range | 330′ / 100.6 m (Line of Sight) |
| Max Systems per Setup | 32 |
| Deviation | ±48 kHz (Peak) |
| Modulation | Wideband FM |
Receiver
| Form Factor | Rackmount |
| Mounting Options | Rackmount (with Included Hardware) |
| Rackmount Size | 1 RU (1/2 Rack) |
| Antenna | 2 x Rod, Detachable (Rear-Mount) |
| Number of Audio Channels | 1 |
| Audio I/O | 1 x XLR 3-Pin Male Balanced Output 1 x 1/4″ TRS Female Unbalanced Output |
| Gain Range | 48 dB (3 dB Steps) |
| Audio Output Level | XLR Output: +18 dBu (Balanced) 1/4″ Output: +12 dBu (Unbalanced) |
| Network I/O | 1 x RJ45 |
| Approximate RF Sensitivity | 2.5 µV |
| Squelch | Adjustable, 5 to 25 dBμV |
| Adjacent Channel Isolation | >75 dB |
| Power Requirements | AC/DC Power Adapter |
| AC/DC Power Adapter | 12 VDC at 300 mA (Included) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 0.2 A |
| Display & Indicators | 1 x OLED (AF Level, Channel, Frequency, Mute, RF Level, Transmitter Battery Status) |
| Housing | Metal |
| Operating Temperature | 14 to 131°F / -10 to 55°C |
| Dimensions | 8.3 x 1.7 x 8″ / 212 x 43 x 202 mm |
| Weight | 2.2 lb / 980 g |
Transmitter
| Form Factor | Handheld |
| RF Output Power | 10 / 30 / 50 mW |
| Audio I/O | None |
| Gain Range | 48 dB (6 dB Steps) |
| Frequency Response | 80 Hz to 18 kHz (Mic) |
| Sync Method | IR |
| Antenna | 1 x Internal, Fixed (Handheld) |
| Power Requirements | Battery |
| Battery Type | 2 x AA (Included) 1 x Sennheiser Accupack (Not Included, Replaceable) |
| Approx. Battery Life | 8 Hours (Alkaline) |
| Display & Indicators | 1 x Back-Lit LCD (Audio Level, Battery Status, Channel, Group, Mute, Signal Strength) |
| Housing | Metal |
| Operating Temperature | 14 to 131°F / -10 to 55°C |
| Dimensions | 2 x 10.4″ / 50 x 265 mm |
| Weight | 15.9 oz / 450 g (with Batteries) |
