QSC

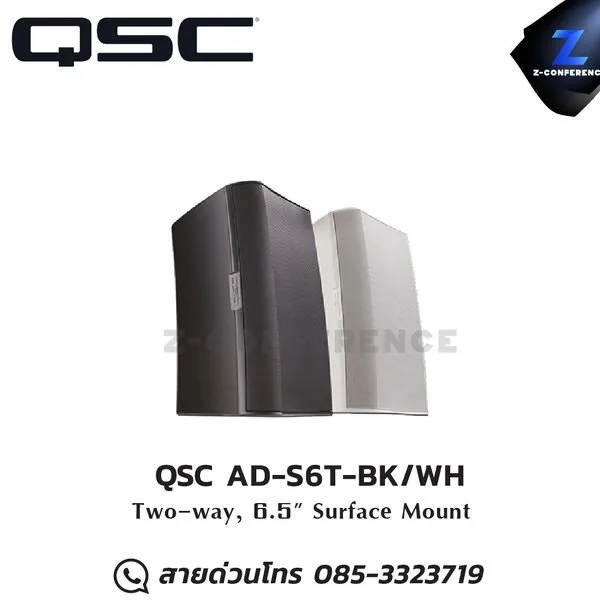

QSC AD-S6T-BK/WH 6.5” weather treated woofer; 1” silk dome tweeter
ลำโพง · ลำโพง PA
- ชนิด: ลำโพง PA
14,400 บาท
ราคาประเมินอุปกรณ์ ไม่รวมค่าติดตั้ง · ⚠️ กรุณารอยืนยันสต็อกสินค้าก่อนสั่งซื้อ
QSC AD-S6T-BK/WH 6.5” weather treated woofer; 1” silk dome tweeter ลำโพง , ตู้ลำโพง , speaker
| System Details | AD-S6T |
|---|---|
| Effective frequency range | 60 Hz - 20 kHz |
| Rated noise power / voltage | 150 watts / 35 volts (rms) |
| Broadband sensitivity | 89 dB SPL |
| Coverage angle (-6 dB) | 105° conical DMT™ |
| Directivity factor (Q) | 5 |
| Directivity Index | 7 dB |
| Maximum continuous SPL | 110 dB |
| Maximum peak SPL | 116 dB |
| Rated impedance | 8 ohms |
| Recommended amplifier power | (loudspeaker "program" power) | 300 watts |
| Transformer taps | 70 V: 60, 30, 15, 7.5 W and 8Ω bypass | | 100V: 60, 30, 15 W and 8Ω bypass |
| HF transducer | 1 inch silk dome tweeter / 1 inch voice coil, horn loaded |
| LF transducer | 6.5 inch weather resistant paper cone woofer | | 1.5 inch / 38 mm voice coil |
| Input connector type | Euroblock connector with parallel output terminals |
| Enclosure material | Painted ABS polymer |
| Grille material | Powder coated aluminum |
| X-Mount material | Powder coated aluminum |
| Ingress protection | IP-54 |
| Operating environment | Designed for indoor and outdoor use |
| Testing | The AD Series loudspeakers qualified for outdoor use using the following tests: | Salt fog: MIL-STD-810G Method 509.5 for 100 hrs. Humidity: MIL-STD-810G Method 507.5, Natural cycle B2, cyclic high RH for 7 days High and low temperature: tested to QSC internal standards between -20° and 50° C |
| Net weight | 13.6 lb / 6.2 kg |
| Product dimensions | (HWD) inches | 14.4 × 8.5 × 8.5 |
| Product dimensions | (HWD) mm | 365 × 215 × 215 |
| Shipping weight | 33.4 lb / 15.2 kg (pair packed) |
| Shipping dimensions | (HWD) inches | 20 × 12 × 23 (pair packed) |
| Shipping dimensions | (HWD) mm | 510 × 305 × 585 (pair packed) |
| Included accessories | X-Mount mounting system, Euroblock connector, | input panel cover |
| spk_type | both |
| rated_w | 60 |
| spk_src | datasheet-verify |
| spk_conf | high |
| pool_exclude | False |
สเปกชีต (Spec Sheet)
