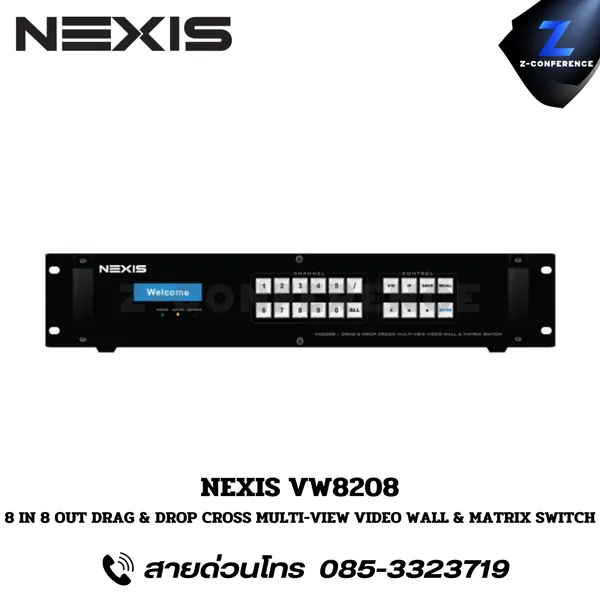

NEXIS VW8208 8 IN 8 OUT DRAG & DROP CROSS MULTI-VIEW VIDEO WALL & MATRIX SWITCH
| Chassis | VW8208 (2U max. 8 input 8 output) |
|---|---|
| Available input boards | VW7804 input board (HDMI signal input); VW7842 4K input board (4K@30 HDMI signal input); VW7604 input board (DVI signal input); VW7514 twisted pair input board (HDBaseT signal input); VW7104 input board (CV, YPbPr, VGAI signal input); VW7404 input board (SDI signal input); VW7704 optical fiber input board (OPTICAL FIBER signal input); VW7002 RJ45 Input card |
| Available output boards | VW8804 stitching output board (HDMI signal output); VW8842 4K stitching output board (4K@30 HDMI signal output); VW8604 stitching output board (DVI, RGB signal output); VW8514 twisted pair stitching output board (HDBaseT signal output); VW8704 optical fiber stitching output board (OPTICAL FIBER signal output) |
| Preview/Control boards | VW-PVW04 preview board (video signal output); VW-CTN04 control board; VW-CTN05 advanced control board |
| Features | FPGA Processor | Maximum 36 INPUT and 36 OUTPUT | Real seamless switching for all types of output cards. | Video wall processing support video signal slicing, scaling, overlapping and roaming over video wall | Support DVI 1.0 protocol, and compatible with HDCP 1.3 and HDMI 1.4 standards. | Support audio embed/de-embedded and each input channel can be selectable, embedded or de-embedded * | Support audio de-embedded and each output channel can be selectable, embedded or de-embedded * | HDMI out each channel can be separately muted audio | Support hot swap, video and audio signal synchronized switching and auto delay for audio signal. | Support EDID read and EDID management by PC software | RS485, RS232, Network control by PC software | RS485, RS232 have command to be controlled by 3rd party central controller such as AMX, Crestron | Front panel control with LCD display and buttons | Front panel buttons support IP setting, preset SAVE, CALL, matrix switching, change input channel for 2 kinds of output card (Splicing HDMI output cards and seamless HDMI switch output cards) | Support firmware online update | intelligent fan cooling management | Plug-in design for cards, the input and output signal type and signal channel amount can be assembled flexibly | Support Web based control to selecting the profile and selecting each channel of the audio/video for the profiles | 12U Rack mountable |
