ATEN · US33441
ATEN US33441
other
- สวิตช์แชร์ USB 3.2 Gen 1 แบบ 4x4 ความเร็วสูงสุด 5 Gbps
- โครงโลหะเกรดอุตสาหกรรม ติดตั้งบนแร็คได้
- ควบคุมระยะไกลผ่าน RS-422/RS-485
- จ่ายไฟได้ทั้ง terminal block (9-24V) และ DC jack
11,900 บาท
ราคาประเมินอุปกรณ์ ไม่รวมค่าติดตั้ง · ⚠️ กรุณารอยืนยันสต็อกสินค้าก่อนสั่งซื้อ

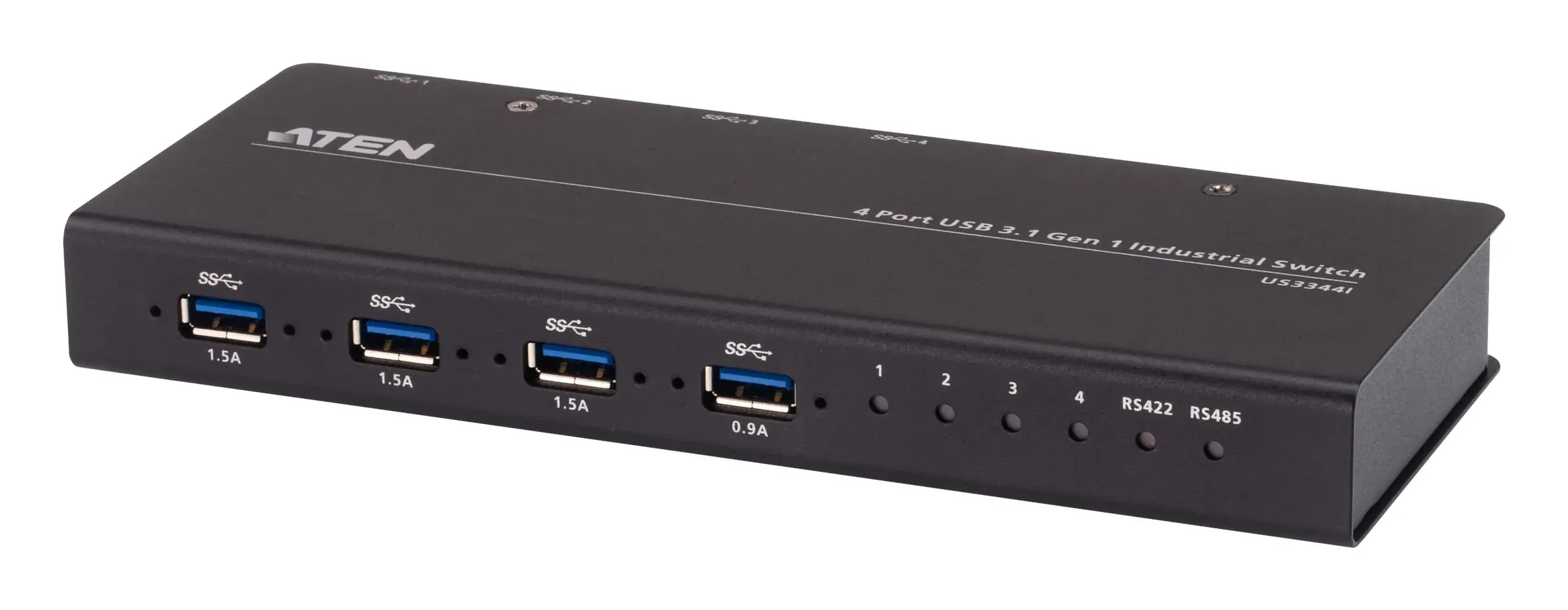

ATEN US33441 (US3344I) เป็น 4 x 4 USB 3.2 Gen 1 Industrial Sharing Switch ที่ให้คอมพิวเตอร์ 4 เครื่องแชร์อุปกรณ์ USB 3.2 Gen 1 ได้ 4 อุปกรณ์ ด้วยความเร็วสูงสุด 5 Gbps และรองรับย้อนหลัง USB 2.0/1.1 ตัวเครื่องโครงโลหะออกแบบสำหรับงานอุตสาหกรรมและติดตั้งบนแร็ค มีพอร์ตควบคุมระยะไกลผ่านสัญญาณ RS-422/RS-485 และรองรับการจ่ายไฟทั้งแบบ terminal block และ DC jack
| Function | Enables 4 computers to share 4 USB 3.2 Gen1 devices |
|---|---|
| Computer Connections | 4 |
| USB Spec | USB 3.2 Gen 1 (5 Gbps), backward compatible with USB 2.0/1.1 |

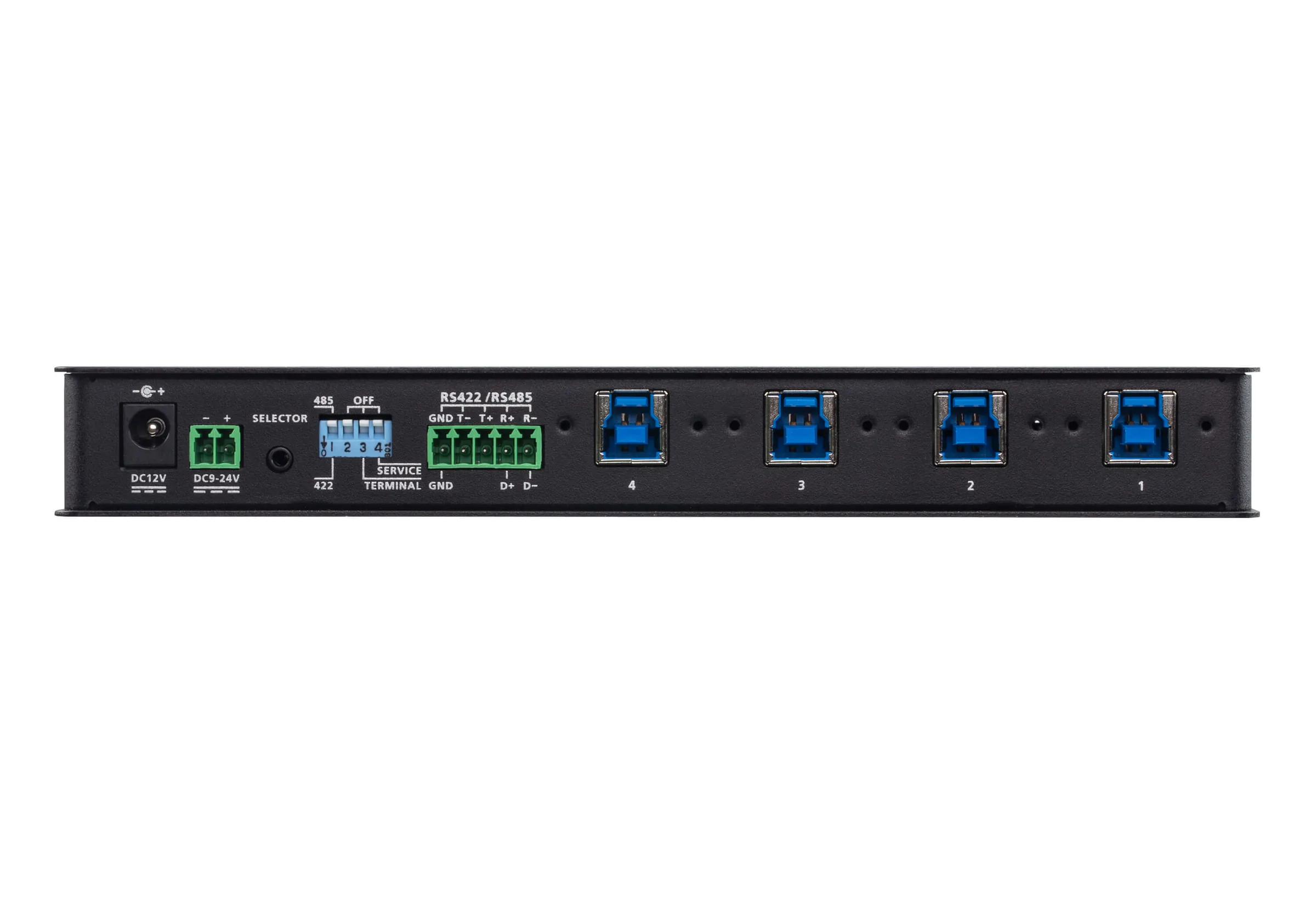

| Connectors - Computer | 4 x USB Type B Female (Blue) |

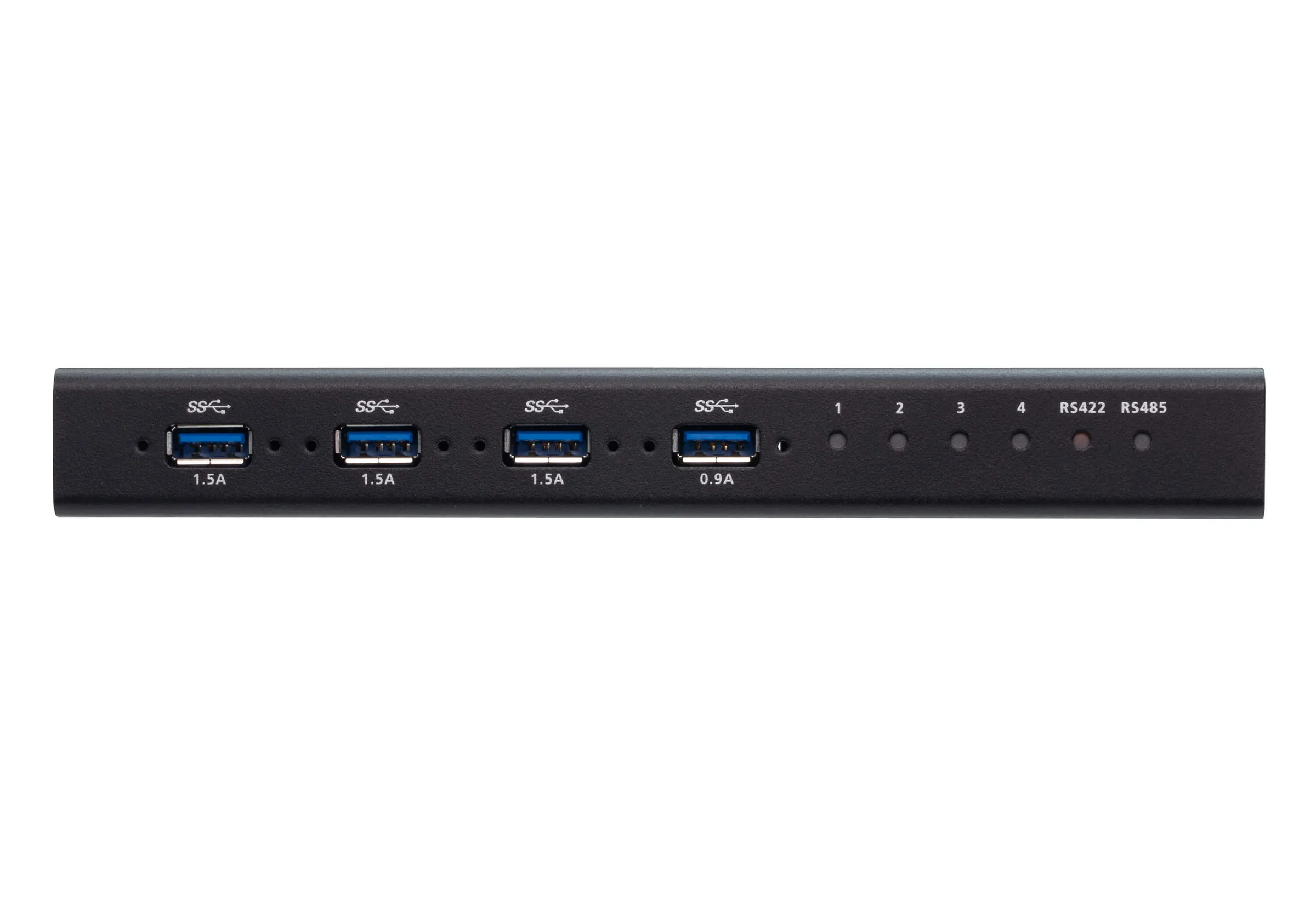

| Connectors - Device | 4 x USB Type A Female (Blue) |
| Connectors - Serial | 1 x 5-pin Terminal Plug (Green) |
| Connectors - Power | 1 x 2-pin 9-24V Terminal Plug (Green); 1 x 12V DC Jack Female (Black) |
| Port Selection | Remote port selector / Serial command (RS422/RS485) |
| Power Consumption | DC12V: 0.376W; DC24V: 0.48W |
| Housing | Metal |
| Operating Temperature | 0–50°C |
| Weight | 0.51 kg (1.12 lb) |
| Dimensions (L x W x H) | 20.00 x 8.00 x 2.50 cm (7.87 x 3.15 x 0.98 in.) |
