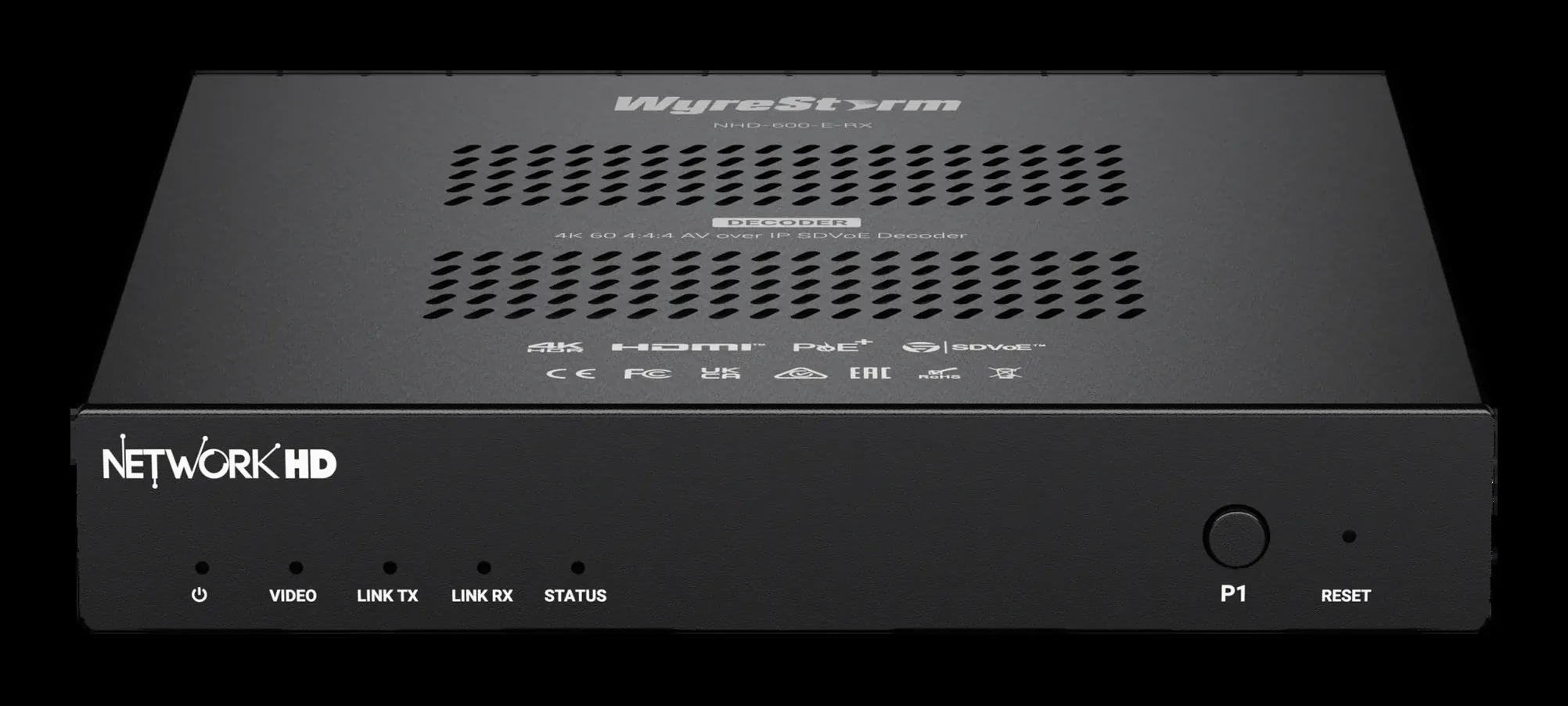

WyreStorm NHD-600-E-RX

ระบบสัญญาณภาพ · AV over IP

ชนิด: AV over IP

28,500 บาท

ราคาประเมินอุปกรณ์ ไม่รวมค่าติดตั้ง · ⚠️ กรุณารอยืนยันสต็อกสินค้าก่อนสั่งซื้อ

สั่งซื้อด่วน Datasheet (รอเอกสาร)

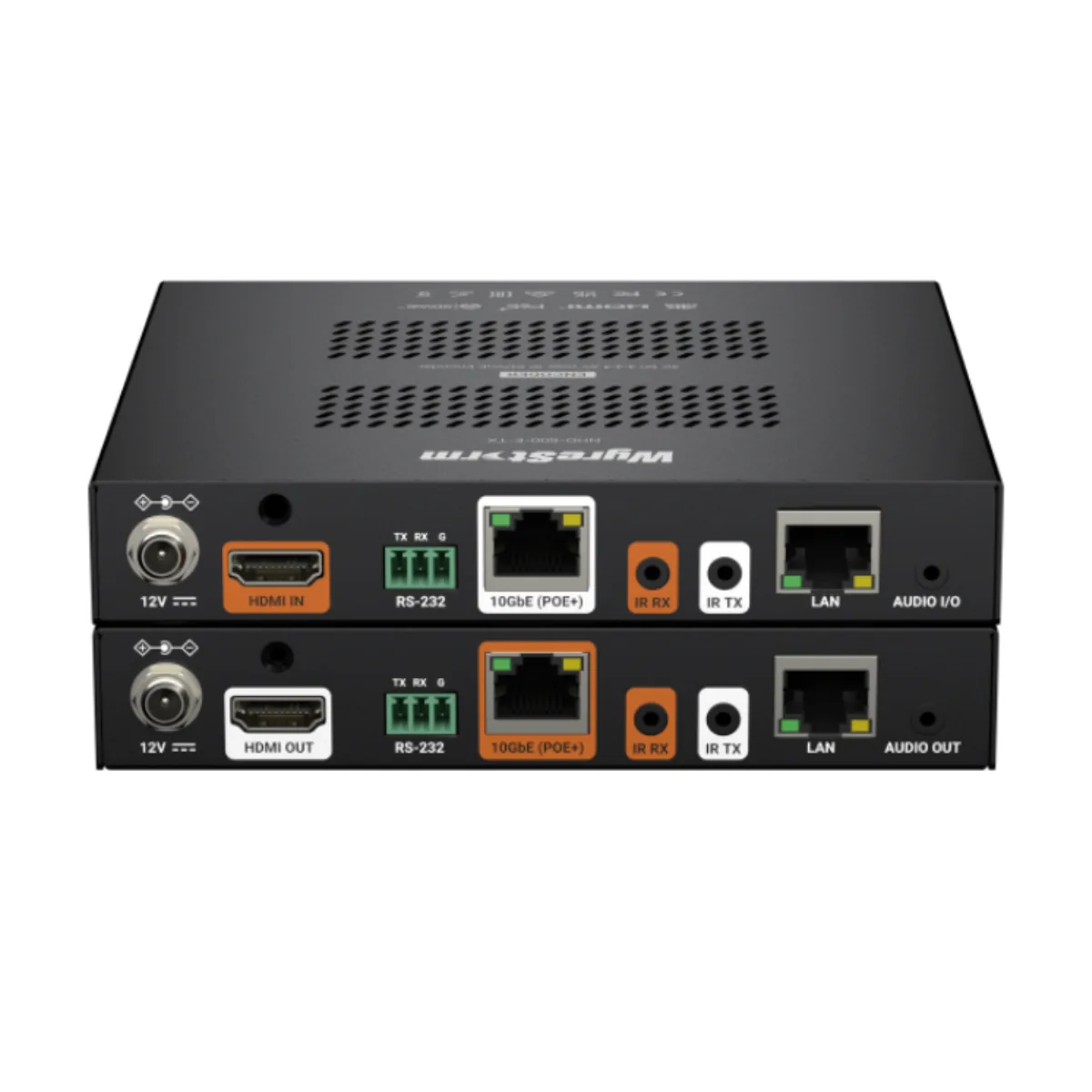

Inputs	TX: 1x HDMI 19-pin HDMI type A; 1x 3.5 mm TRS jack connector, Analog audio input; 1x 10GbE 8-pin RJ45. RX: 1x 10GbE 8-pin RJ45
Outputs	TX: 1x 3.5 mm TRS jack connector, Analog audio output (de-embed from HDMI input), Unbalanced stereo audio. RX: 1x HDMI 19-pin HDMI type A; 1x 3.5 mm TRS jack connector, Analog audio output Unbalanced stereo audio. Both HDMI and Analog outputs allow discrete audio routing from any available NHD-600 Encoder on the same network.
Video Encoding	SDVoE Pixel Pipeline: 1080p@60Hz 8bit – 3.4Gbps; 4K @30Hz 4:4:4 8bit – 6.4Gbps; 4K @60Hz 4:4:4 8bit – 8.7Gbps (with light compression)
End to End Latency	Genlock Mode: Uncompressed = 30us, Compressed <120us; Fast Switch Mode: 1~2 video frames = min. between 16.7 – 33.4ms @ 60fps
Video Resolution (Max)	5120x2160p @60Hz 4:2:0; 5120x2160p @30Hz 4:4:4; 5120x1440p @30Hz 4:4:4; 4096x2160p @ 60Hz 8bit 4:4:4 or RGB; 3840x2160p @ 60Hz 12bit 4:2:2 Dolby Vision; 3840x2160p @ 60Hz 10bit 4:2:2 HDR10/HLG; 1920x1080p @60Hz 12bit; *5K resolution only support in genlock mode
Audio Formats	LPCM, 2.0/5.1/7.1 channel, 44.1/48/96/192 kHz; Dolby True HD, up to 7.1,192kHz; DTS-HD Master, up to 7.1,192kHz; Dolby Digital AC-3 (DVD format); DTS version 1 (DVD format)
HDMI	HDCP 2.2, 2.3 \| CEC
RS232	1x 3-pin Phoenix Connector \| 2 Way \| Broadcast \| Routed \| API Programmable
Ethernet	1x 1GbE LAN 8-pin RJ45
IR	1x IR TX 3.5mm TS Mono Jack \| API Programmable; 1x IR RX 3.5mm TRS Stereo Jack \| API Programmable
Power Supply	12V 2A DC PSU \| 802.3at PoE+ Compliant
Max Power Consumption	Max: 24w \| Average: 10w
Operating Temperature	0 ~ +45°C (32 ~ +113 °F), 10% ~ 90%, non-condensing
Storage Temperature	-20 ~ +70°C (-4 ~ +158 °F), 10% ~ 90%, non-condensing
Dimensions & Weight	145.2mm x 150mm x 25mm (L x W x H)
Safety and Emission	CE \| FCC \| RoHS \| RCM \| EAC

เอกสารสเปก / คู่มือ — กำลังจัดเตรียม
