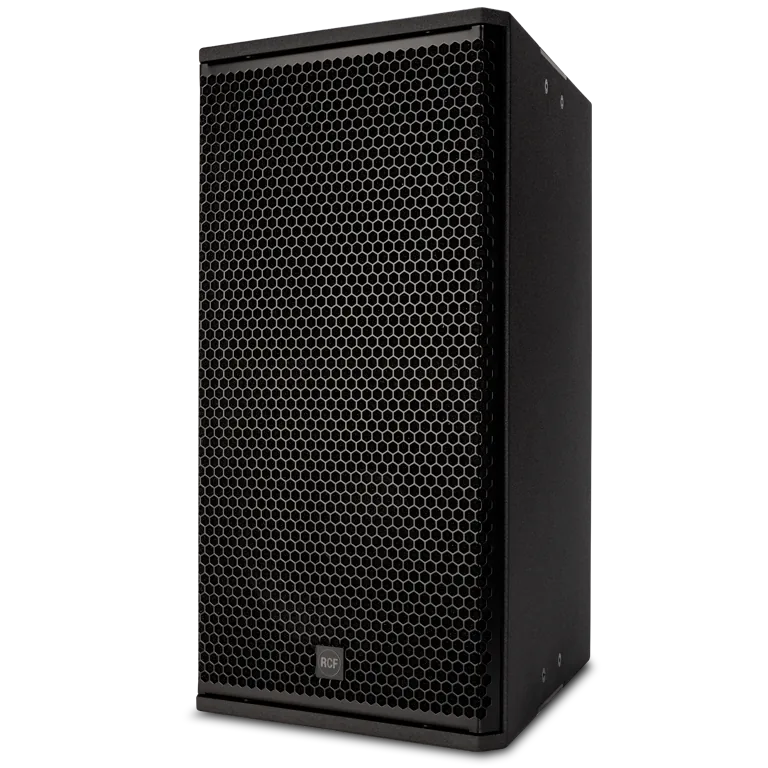

RCF Q 15-P 8ohm
RCF Q 15-P 8ohm
ตู้ลำโพงแบบพอยต์ซอร์ส (point source) 2 ทาง แบบพาสซีฟ (Passive) ดอก 15 นิ้ว และ 4 นิ้ว มุมกระจายเสียงคงที่…
อุปกรณ์เสริม & ติดตั้ง / เคส / กระเป๋า
- ชนิด: เคส / กระเป๋า
215,200 บาท
ราคาประเมินอุปกรณ์ ไม่รวมค่าติดตั้ง ⚠️ กรุณารอยืนยันสต็อกสินค้าก่อนสั่งซื้อ
- 🧾ราคายังไม่รวม VAT 7% (รวม VAT แล้ว 230,264 บาท)
- 📦สั่งได้ทันที ทีมงานยืนยันสต็อกและวันส่งภายใน 1 วันทำการ
- 🚚สินค้ามีสต็อกส่งภายใน 1–3 วันทำการ (กรุงเทพฯ และปริมณฑล) สินค้าสั่งนำเข้าแจ้งวันส่งในใบเสนอราคา
- 🛡️สินค้าของแท้ รับประกันศูนย์ไทย ออกใบกำกับภาษีเต็มรูปแบบ
- 💬 สอบถามรุ่นนี้ได้ทันที โทร 088-886-4660 LINE @csiproav
ภาพรวม
ตู้ลำโพงแบบพอยต์ซอร์ส (point source) 2 ทาง แบบพาสซีฟ (Passive) ดอก 15 นิ้ว และ 4 นิ้ว มุมกระจายเสียงคงที่ (constant directivity coverage) 22.5°x40° รับกำลัง 1500W AES 8Ω
ข้อมูลทางเทคนิค
| Acoustical specifications — Frequency Response (-10dB) | 45 Hz - 20000 Hz |
|---|---|
| Acoustical specifications — Max SPL @ 1m | 138 dB |
| Acoustical specifications — Horizontal coverage angle | 22.5° |
| Acoustical specifications — Vertical coverage angle | 40° |
| Acoustical specifications — Directivity index Q | 20 |
| Power section — Amplification | Bi-Amp |
| Power section — Crossover Frequencies | 600 Hz |
| Power section — Nominal Impedance LF | 8 ohm |
| Power section — Power Handling LF | 1350 W |
| Power section — Peak Power Handling LF | 5400 W |
| Power section — Sensitivity LF | 97 dB |
| Power section — Nominal Impedance HF | 8 ohm |
| Power section — Power Handling HF | 150 W |
| Power section — Peak Power Handling HF | 600 W |
| Power section — Sensitivity HF | 113 dB |
| Power section — Protections HF | Capacitor on Compression Driver |
| Power section — Recommended Amplifiers | XPS 16K, XPS 16KD, QPS 10K |
| Transducers — Compression Driver | 1 x 1.4'' neo, 4.0'' v.c |
| Transducers — Woofer | 1 x 15'' neo, 4.0'' v.c |
| Input/Output section — Input connectors | Speakon® NL4 |
| Input/Output section — Output connectors | Speakon® NL4 |
| Standard compliance — Safety agency | CE compliant |
| Physical specifications — Cabinet/Case Material | Baltic birch plywood |
| Physical specifications — Hardware | Side and rear array rigging point |
| Physical specifications — Handles | 2 |
| Physical specifications — Grille | Steel |
| Physical specifications — Color | Black - RAL 9005 |
| Size / Weight — Height | 860 mm / 33.86 inches |
| Size / Weight — Width | 446 mm / 17.56 inches |
| Size / Weight — Depth | 590 mm / 23.23 inches |
| Size / Weight — Weight | 55 kg / 121.25 lbs |
| Shipping information — Package Height | 9650 mm / 379.92 inches |
| Shipping information — Package Width | 5850 mm / 230.32 inches |
| Shipping information — Package Depth | 7750 mm / 305.12 inches |
| Shipping information — Package Weight | 59 kg / 130.07 lbs |
| Ref. Code | TCR-MMYVBW |
