Panasonic

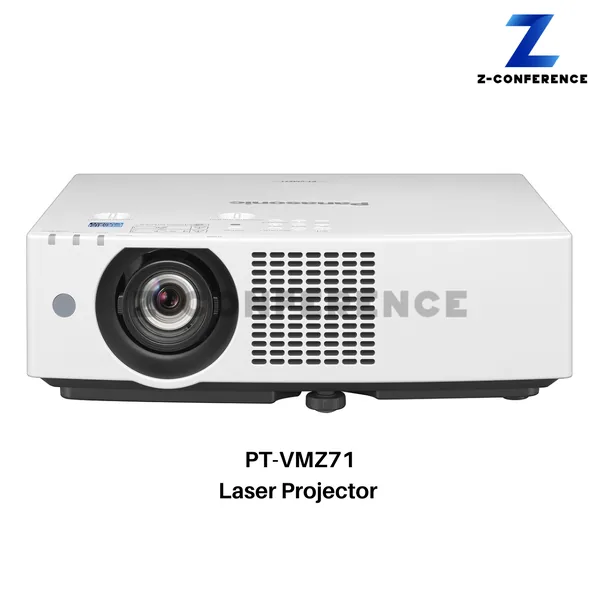

Projector Panasonic PT-VMZ71 (Laser/7,000 lm/WUXGA) projector
PT-VMZ71 เป็นโปรเจคเตอร์เลเซอร์ระบบ LCD ความสว่าง 7,000 ANSI Lumens ความละเอียด WUXGA (1920 x 1200)…
โปรเจคเตอร์ & จอรับภาพ / โปรเจคเตอร์
- ชนิด: โปรเจคเตอร์
- โปรเจคเตอร์เลเซอร์ระบบ LCD ความสว่าง 7,000 ANSI Lumens
- ความละเอียด WUXGA (1920 x 1200) คอนทราสต์ 3,000,000:1 (Dynamic Contrast)
- เลนส์ซูมปรับด้วยมือ (Manual Zoom) 1.6 เท่า Throw Ratio 1.09–1.77:1
- HDMI 2 ช่อง (4K/30p) และ DIGITAL LINK (HDBaseT)
204,673 บาท
ราคาประเมินอุปกรณ์ ไม่รวมค่าติดตั้ง ⚠️ กรุณารอยืนยันสต็อกสินค้าก่อนสั่งซื้อ
- 🧾ราคายังไม่รวม VAT 7% (รวม VAT แล้ว 219,000 บาท)
- 📦สั่งได้ทันที ทีมงานยืนยันสต็อกและวันส่งภายใน 1 วันทำการ
- 🚚สินค้ามีสต็อกส่งภายใน 1–3 วันทำการ (กรุงเทพฯ และปริมณฑล) สินค้าสั่งนำเข้าแจ้งวันส่งในใบเสนอราคา
- 🛡️สินค้าของแท้ รับประกันศูนย์ไทย ออกใบกำกับภาษีเต็มรูปแบบ
- 💬 สอบถามข้อมูลรุ่นนี้ โทร 088-886-4660 LINE @csiproav
ภาพรวม
Panasonic PT-VMZ71 เป็นโปรเจคเตอร์เลเซอร์ระบบ LCD ความสว่าง 7,000 ANSI Lumens ความละเอียด WUXGA (1920 x 1200) อัตราคอนทราสต์ 3,000,000:1 (Full On/Full Off) อายุการใช้งานจนความสว่างลดลงเหลือ 50% ประมาณ 20,000 ชั่วโมงในโหมด NORMAL เลนส์ซูมแบบ manual 1.6 เท่า อัตราส่วนการฉาย (Throw Ratio) 1.09–1.77:1 เลื่อนเลนส์แนวตั้ง (Vertical Lens Shift) +44% แนวนอน ±20% ขนาดภาพ 30–300 นิ้ว ช่องต่อ HDMI 2 ช่อง (4K/30p) และ DIGITAL LINK (HDBaseT compliant) มีลำโพงในตัว 10 W น้ำหนักประมาณ 7.0 kg
ข้อมูลทางเทคนิค
| Projector Type | LCD projectors |
|---|---|
| Display Method | Transparent LCD panel (x 3, R/G/B) |
| Panel Size | 16.3 mm (0.64 in) diagonal (16:10 aspect ratio) |
| Drive Method | Active matrix method |
| Number of Pixels | 2,304,000 (1920 x 1200) pixels |
| Light Source | Laser diodes |
| Light Output | 7,000 lm |
| Light Output (ANSI) | 7,000 lm |
| Light Output (Center) | 7,500 lm |
| Time until 50% decline (NORMAL) | 20,000 hours |
| Time until 50% decline (ECO) | 24,000 hours |
| Time until 50% decline (QUIET) | 20,000 hours |
| Resolution | WUXGA (1920 x 1200 pixels) |
| Contrast Ratio | 3,000,000:1 (Full On/Full Off)(When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1].) |
| Screen Size | 0.76–7.62 m (30–300 in), 16:10 aspect ratio |
| Center-to-corner Zone Ratio | 85% |
| Lens | 1.6x manual zoom (throw ratio: 1.09–1.77:1), manual focus lens, F 1.60–2.12, f 15.30–24.64 mm |
| Digital Zoom Extender | Throw Ratio 1.09–2.21:1 (Corresponding value. When used together with optical zoom.) |
| Lens Shift Vertical | +44 % |
| Lens Shift Horizontal | ±20 % |
| Keystone Correction | Vertical: ±25 °, Horizontal: ±35 ° |
| Installation | Ceiling/floor, front/rear, free 360-degree installation |
| HDMI IN | HDMI 19-pin x 2 (Compatible with HDCP, Deep Color, 4K/30p signal input), CEC supported |
| COMPUTER IN | D-sub 15-pin (female) x 2 (RGB/YPBPR/YCBCR) |
| AUDIO IN | M3 stereo mini-jack x 2 |
| AUDIO OUT | M3 stereo mini-jack x 1 |
| SERIAL IN | D-sub 9-pin (female) x 1 for computer control (RS-232C compliant) |
| Digital Link IN / LAN | RJ-45 x 1 for network and DIGITAL LINK connection (video/network/serial control) (HDBaseT compliant), 100Base-TX (Compatible with PJLink [Class 2],HDCP, Deep Color, 4K/30p signal input) |
| LAN | RJ-45 x 1 for network control, 10Base-T, 100Base-TX, compatible with PJLink [Class 2] |
| USB TYPE A | USB connector (Type A) x 1 for Memory Viewer function, optional AJ-WM50 Series Wireless Module,power supply (DC 5 V, maximum 2 A) |
| Power Supply | AC 100 V–240 V, 50/60 Hz |
| Maximum Power Consumption | 420 W (4.5–1.9 A) (455 VA)(Power consumption is 410 W at 200–240 V) |
| Power Consumption (NORMAL) | 390 W (100–120 V), 375 W (200–240 V) |
| Power Consumption (ECO) | 275 W (100–120 V), 265 W (200–240 V) |
| Power Consumption (QUIET) | 270 W (100–120 V), 260 W (200–240 V) |
| Built-in Speaker | 10 W monaural |
| Filter Maintenance Cycle | Approx. 20,000 hours |
| Operation Noise (NORMAL) | 38 dB |
| Operation Noise (ECO) | 38 dB |
| Operation Noise (QUIET) | 28 dB |
| Dimensions (W x H x D) | 399 mm x 115 mm x 348 mm (15 23/32" x 4 17/32" x 13 11/16") (not including protruding parts) |
| Weight | Approx. 7.0 kg (15.43 lbs) |
| Operating Temperature | 0–45 °C (32–113 °F) |
| Operating Humidity | 20–80 % (no condensation) |
| Ref. Code | TCR-N5SO4O |
