ATEN · PE5224TA

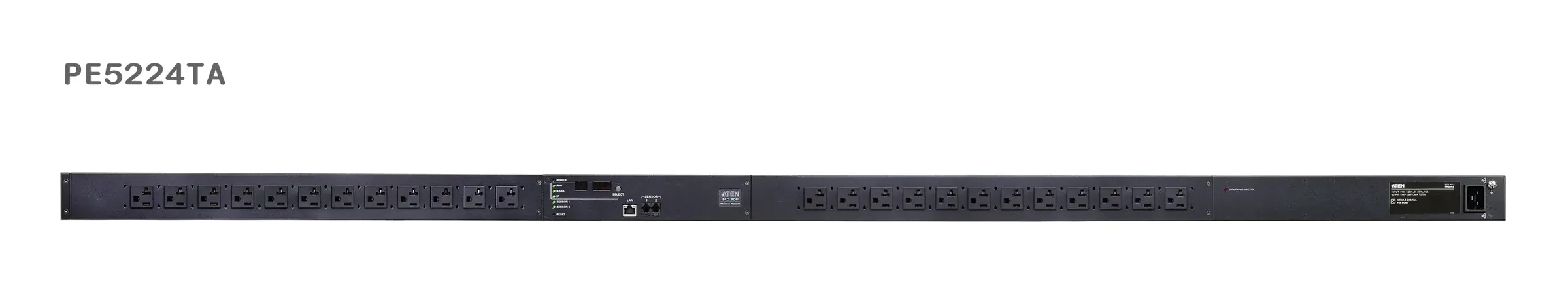

ATEN PE5224TA 20A 24-Outlet eco PDU (Thin Form Factor eco PDU) Power Distribution Unit
ตู้แร็ค & จ่ายไฟ · PDU / รางจ่ายไฟ
- ชนิด: PDU / รางจ่ายไฟ
- eco PDU ขนาด 0U 24 ช่อง (24 x NEMA 5-20R) แบบ thin form factor
- ตัวเครื่องกว้างเพียง 56 mm เพิ่มพื้นที่ในแร็ค 8% ช่วยระบายอากาศดีขึ้น
- วัดพลังงานแบบ real-time พร้อมการแจ้งเตือนระดับ PDU และ Bank ผ่าน TCP/IP
- รองรับ SNMP V1/V2/V3, การเข้ารหัส SSL 128-bit, RADIUS และเซ็นเซอร์สภาพแวดล้อม
สอบถามราคา
ATEN NRGence™ PE5224TA eco PDU เป็น thin form factor intelligent PDU ขนาด 0U ที่มี 24 AC outlets (24 x NEMA 5-20R) ตัวเครื่องหน้าแคบเพียง 56 mm ติดตั้งในตู้แร็คได้กระชับ เพิ่มพื้นที่ระบายอากาศ 8% พร้อมการวัดพลังงานแบบ real-time และการแจ้งเตือนตามเกณฑ์ผ่าน TCP/IP
| Nominal Input Voltage | 100–120 VAC |
|---|---|
| Maximum Input Current | 20A(Max) |
| Input Frequency | 50-60 Hz |
| Input Connection | NEMA 5-20P |
| Input Power | 2400 VA(Max) |
| Outlet Type | Total: 24 x NEMA 5-20R; Bank1-1: Outlet 1–12; 12 x NEMA 5-20R; Bank1-2: Outlet 13–24; 12 x NEMA 5-20R |
| Nominal Output Voltage | 100–120 VAC |
| Maximum Output Current (Outlet) | NEMA 5-20R: 20A(Max) |
| Maximum Output Current (Bank) | 20A(Max) |
| Maximum Output Current (Total) | 20A(Max) |
| Metering | Bank Level Current, Voltage, VA, PF and kWh Monitoring |
| Outlet Switching | None |
| Environment Sensor Ports | 2 |
| Metering Accuracy | Voltage Range: 100VAC ~ 250VAC +/-1%; Power Range: 100W ~ Maximum Capacity +/- 2%; Current Range: 0.1A~1A +/- 0.1A, 1A~20A +/-1% |
| Dimensions (L x W x H) | 177.50 x 5.60 x 4.80 cm (69.88 x 2.2 x 1.89 in.) |
| Weight | 3.93 kg (8.66 lb) |
| Power Cord Length | 3 m |
| Temperature (Operating/Storage) | 0–50°C / -20–60°C |
| Humidity (Operating & Storage) | 0–80% RH, Non-Condensing |
| EMC Verification | FCC, J55022, Others by Request |
| Safety Verification | PSE, Others by Request |
